High temperature spring NTC thermistor for coffee machine

Guangdong JPET Technology Co., LTD is a professional R & D and manufacturer of NTC temperature sensor, NTC thermistor and temperature switch.
JPTF series bullet metal casing NTC temperature sensor is made by welding a high-sensitivity, high-reliability NTC thermistor chip and wire.
It is encapsulated with insulating, heat-conducting and waterproof materials into the required shape, which is convenient for installation and
remote temperature measurement and control.Can be encapsulated according to the use and installation conditions and customized products are accepted.


Features:
1.Stable performance and high reliability
2.High-thermal conductivity
3.Good water proofing property
4.Fast reaction
5.High sensitivity
6.High precision both resistance value and B value, good consistency and interchangeability
7.Accept customization


Applications:
1.Coffee maker, smart toilet
2.Microwave oven, air conditioner, frequency converter, induction cooker
3.Heater, freezer, water dispenser, disinfection cabinet, washing machine, soybean milk machine
4.Rice cooker, oven, electric car, soybean milk machine

Dimensions:

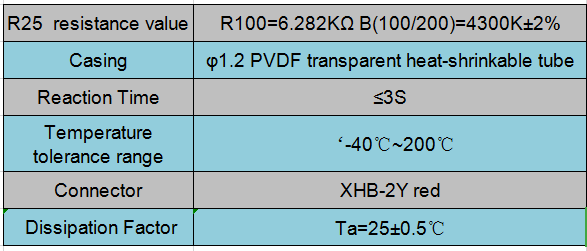

Product Parameter Characteristics:

1.Thermal reaction time: ≤3 seconds in water bath
2.Dissipation factor: about 1.3mW/℃ in standing air
3.Withstand voltage test: 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball
4.Insulation test:≥100MΩ
5.Rated power：≤5mW
6.Operating temperature range：-40℃～200℃


Ordering Instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1. Resistance value requirements (can be selected according to the above table)
2. B value requirements (can be selected according to the above table)
3. Working environment (whether waterproof, moisture-proof, cold and other requirements )
4. Application: different usgae has different temperature resistant wire and different resistance value
5. Operating temperature range
6. Accuracy requirement (1%-5% optional)
7. Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8. Customized shell dimensions is welcome
9. Customized wire rod and length is welcome
10. If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are
including many parameters and specifications, please confim before ordering.Customized parameters and dimensions is welcome.


RT table of conventional resistance values：
