NTC temperature sensor for health pot
Guangdong JPET Technology Co., LTD is a professional R & D and manufacturer of NTC temperature sensor, NTC thermistor and temperature switch.
JPTF series epoxy-coated type NTC temperature sensor is made by welding a high-sensitivity, high-reliability NTC thermistor chip and wire.
It is encapsulated with insulating, heat-conducting and waterproof materials into the required shape, which is convenient for installation and
remote temperature measurement and control.Can be encapsulated according to the use and installation conditions and customized products are accepted.
Features:
1.Stable property,high reliability
2.Compact structure,fast reaction,high sensitivity
3.Good heat resisting circulation
4.Used epoxy encapsulation
5.Epoxy coated head size up to ±2.0mm
Applications:
1.Household appliances, computers
2.New energy vehicle battery pack
3.Health pot
4.BMS battery system, battery pack
5.Air temperature
6.Charge Pal
Product Parameter Characteristics:
1.Thermal reaction time: ≤10 seconds in water bath
2.Dissipation factor: about 2.6mW/℃ in standing air
3.Withstand voltage test: AC 1000V 2mA 3 seconds
4.insulation test：DC 500V ≥100MΩ
5.Rated power：≤10mW
6.Operating temperature range：-30℃～100℃

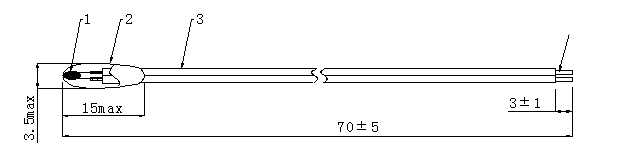

Dimensions:
Ordering Instructions：
Please inform the following parameters when ordering NTC temperature sensor:RT table of conventional resistance values：
