Temperature Sensor

fixed pattern ring terminal temperature sensor

Guangdong JPET Technology Co., LTD is a professional R & D and manufacturer of NTC temperature sensor, NTC thermistor and temperature switch.
JPTF series NTC temperature sensor is made by welding a high-sensitivity, high-reliability NTC thermistor chip and wire.
It is encapsulated with insulating, heat-conducting and waterproof materials into the required shape, which is convenient for installation and
remote temperature measurement and control.Can be encapsulated according to the use and installation conditions and customized products are accepted.


Features:
1.High heat resistance, fast response
2.Wide temperature range
3.Adopt double-layer sealing process with good insulation sealing, mechanical impact resistance and bending resistance ability
4.Customize various ring terminal sizes is welcome
5.Be convenient to assemble


Applications:
1.Automobile charging pile,charging gun
2.Vehicle frequency converter,heat-pump water heater
3.Heat abstractor.
4.Temperature test of cooking hot rice plate
5.Temperature test of automotive brake


Parameters Characteristics：
1.Thermal reaction time: ≤16 seconds in water bath
2.Dissipation factor: about 2.8mW/℃ in standing air
3.Withstanding voltage test：AC 1800V 2mA 1 second
4.Insulation test:DC 500V ≥100MΩ
5.Rated power：≤10mW
6.Operating temperature range：-30℃～200℃

Dimensions:

Ordering Instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1、Resistance value requirements (can be selected according to the above table)
2. B value requirements (can be selected according to the above table)
3. Working environment (whether waterproof, moisture-proof, cold and other requirements )
4. Application: different usgae has different temperature resistant wire and different resistance value
5. Operating temperature range
6. Accuracy requirement (1%-5% optional)
7. Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8. Customized shell dimensions is welcome
9. Customized wire rod and length is welcome
10. If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are including many
parameters and specifications, please confim before ordering. Customized parameters is welcome.

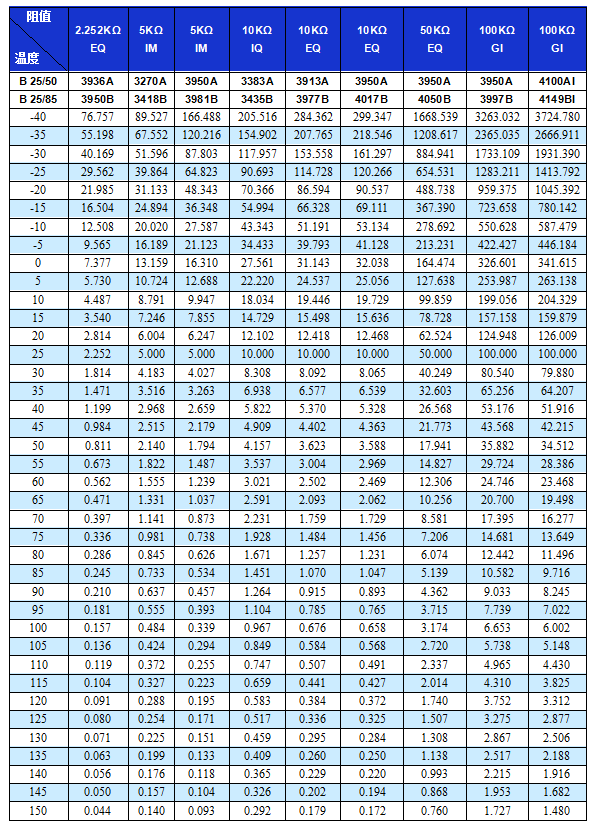

RT table of conventional resistance values：
